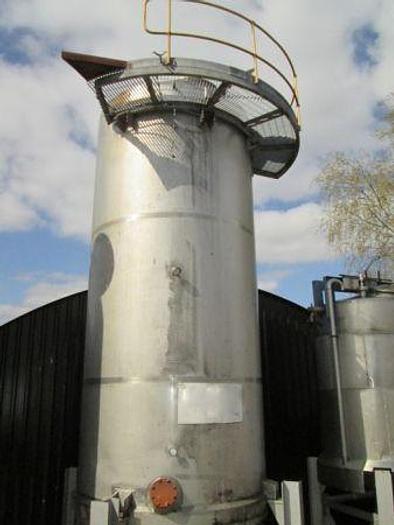

25,000 Litre Stainless steel Jacketed & Insulated Vessel
or
Call +44 (0)1777 717546
Specifications
| Manufacturer | Bibby |
| Capacity | 25,000 litres |
| Insulation type | Insulated |
| Tank jacket | Steam Jacketed |
| Agitator | No Agitator |
| Inlet connection | 3" |
| Outlet connection | 3" 1/2 |
| Material | 304 Stainless Steel |
| Quantity | 1 |
Description
25,000Ltr Stainless steel Jacketed & Insulated Tank with Conical bottom. 304 ss 5900mm Tall vessel x 2400m mounted on 3400mm tall legs o/all height 9300mm inc legs Inlet Connections 2.5" ,3" & 3.5" OUtlet Connections 2.5" ,3" & 3.5" Vessel Design Temp 60 deg C Vessel Design Pressure Atmospheric Jacket Design Temp 70 deg C Jacket Design Pressure 4.4 Bar with Manway located on top
