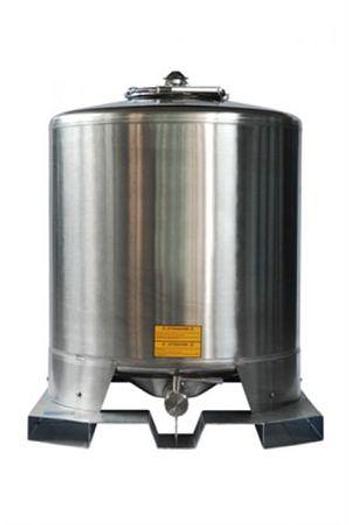

500 ltr Single Skin Transi Tank


Contact us for price


Retford, United Kingdom

orCall +44 (0)1777 717546


ManufacturerMoody Process Equipment
Stock codeNEW 500 ltr Transi Tank
Insulation typeNot Insulated
Tank jacketNo Jacket
AgitatorNo Agitator
Inlet connectionClamped Manway
Outlet connection2"
Material304 Stainless Steel
Capacity500 litres

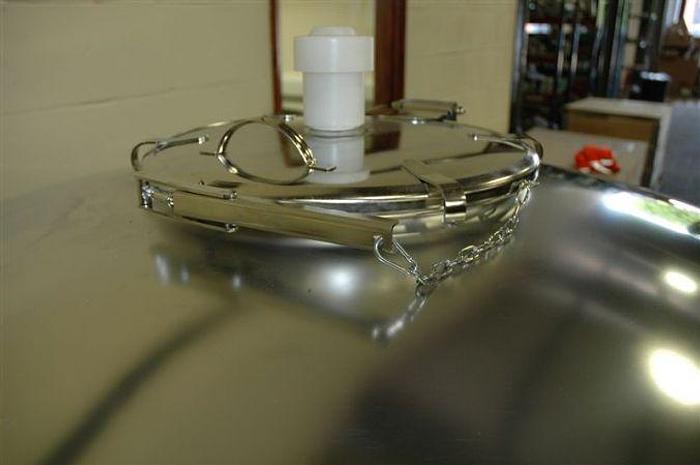

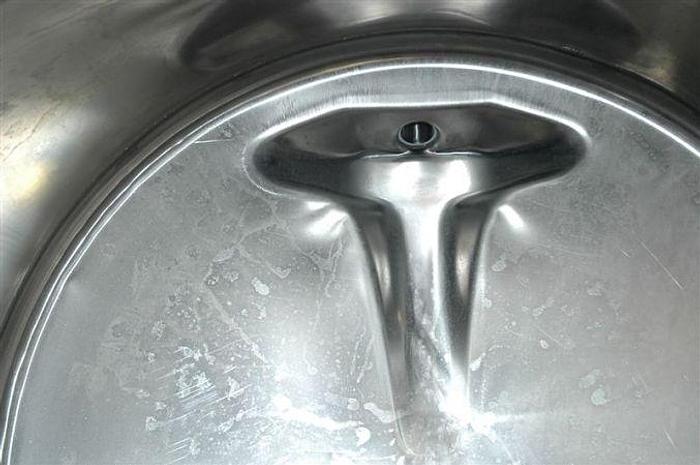

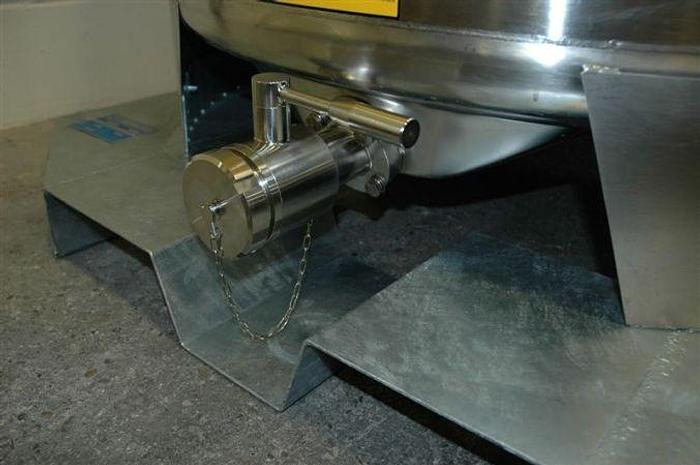

Technical features: Palletised tank for storing and internal handling. Shaped base with fork truck slot for a pallet truck Bottom with a deep drawn shaped discharge to grant full product discharge 304 Stainless steel cold rolled 2b finish Cold forged bottom covers with optimised shape, minimum thickness 1.5mm Robotized TIG welding process Pickled and passivated seams Bath galvanised mild steel palletised base Stainless steel ring welded to the tanks and screwed to the base Max hydraulic test pressure: 2.0 bar (200Kpa) Max working pressure: 0.5 bar (50 Kpa) Equipment: 400 mm. diameter manhole Lid with clamp closure (standard) Butterfly outlet, diameter DN 50 (2") 1" diameter threaded connection for safety valve Pressure relief valve (max press. 0.5 bar) Optional items (upon request): 316 Stainless Steel Insulation Water Jacket Sprayball Prop type agitator Level gauges Additional connections
