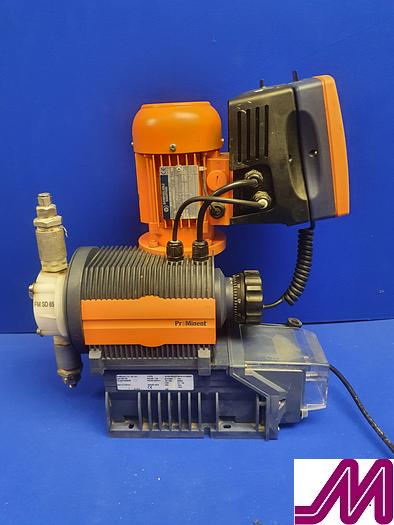

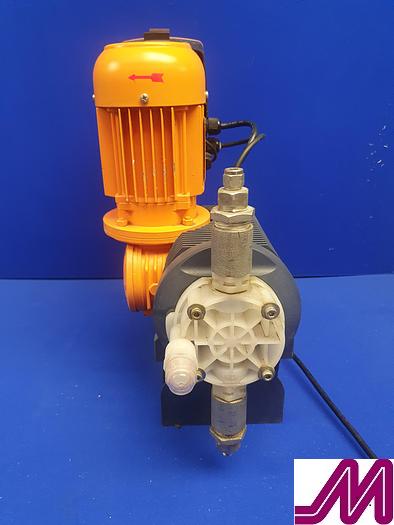

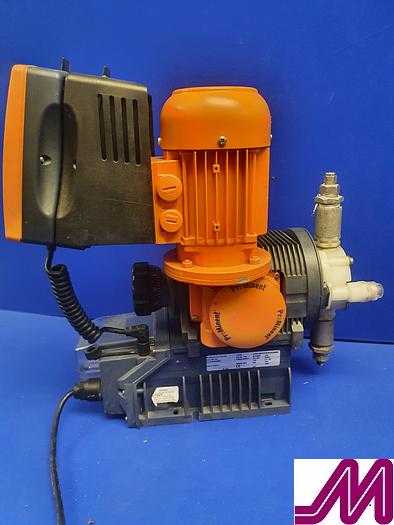

2013 Sigma X Prominent S1CBH Diaphragm Metering Pump S1CBH 10044PVTS010UA010S0EN

Price

Contact us for price

Available quantity

6

Location

Retford, United Kingdom

orCall +44 (0)1777 717546

Specifications

ManufacturerSigma X Prominent
ModelS1CBH Diaphragm Metering Pump S1CBH 10044PVTS010UA010S0EN
Year2013
Serial Number2013163909
Stock Number2628

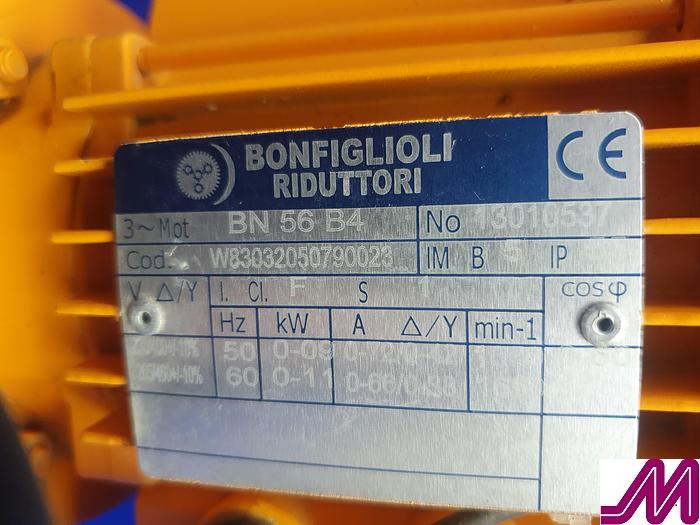

Motor size0.09 KW
Flowrate53 Litre per hour
Pressure10 Bar

Description

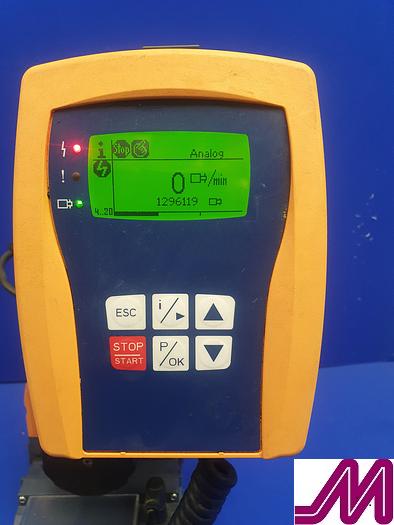

The standardised operating concept with click wheel and 4 additional operating keys on a removable operating unit. A large illuminated LCD and a 3-LED display for operating, warning and error messages, visible from all sides, offers additional operating convenience.

The Sigma, like all smart ProMinent metering pumps, can be flexibly connected to various bus systems.


  • Stroke length: 4 mm
  • Stroke length adjustment range: 0 – 100%
  • Stroke length adjustment: manually using self-locking rotary dial in 1% increments
  • Metering reproducibility is better than ± 2% in the 30 – 100% stroke length adjustment range under defined conditions and with correct installation
  • Wetted materials: PVDF, stainless steel 1.4571/1.4404 (special materials on request)
